The Tip Switch Kit adds an additional layer of safety to your heater. Heater will shut off when tipped more than 15 degrees. The tip switch is a non-mercury switch which works in conjunction with the thermocouple. All the parts needed to convert heaters over is included in the kit. The kit works with most older models A270 & A242 Heaters. Kit comes with an instruction label to added to the post.

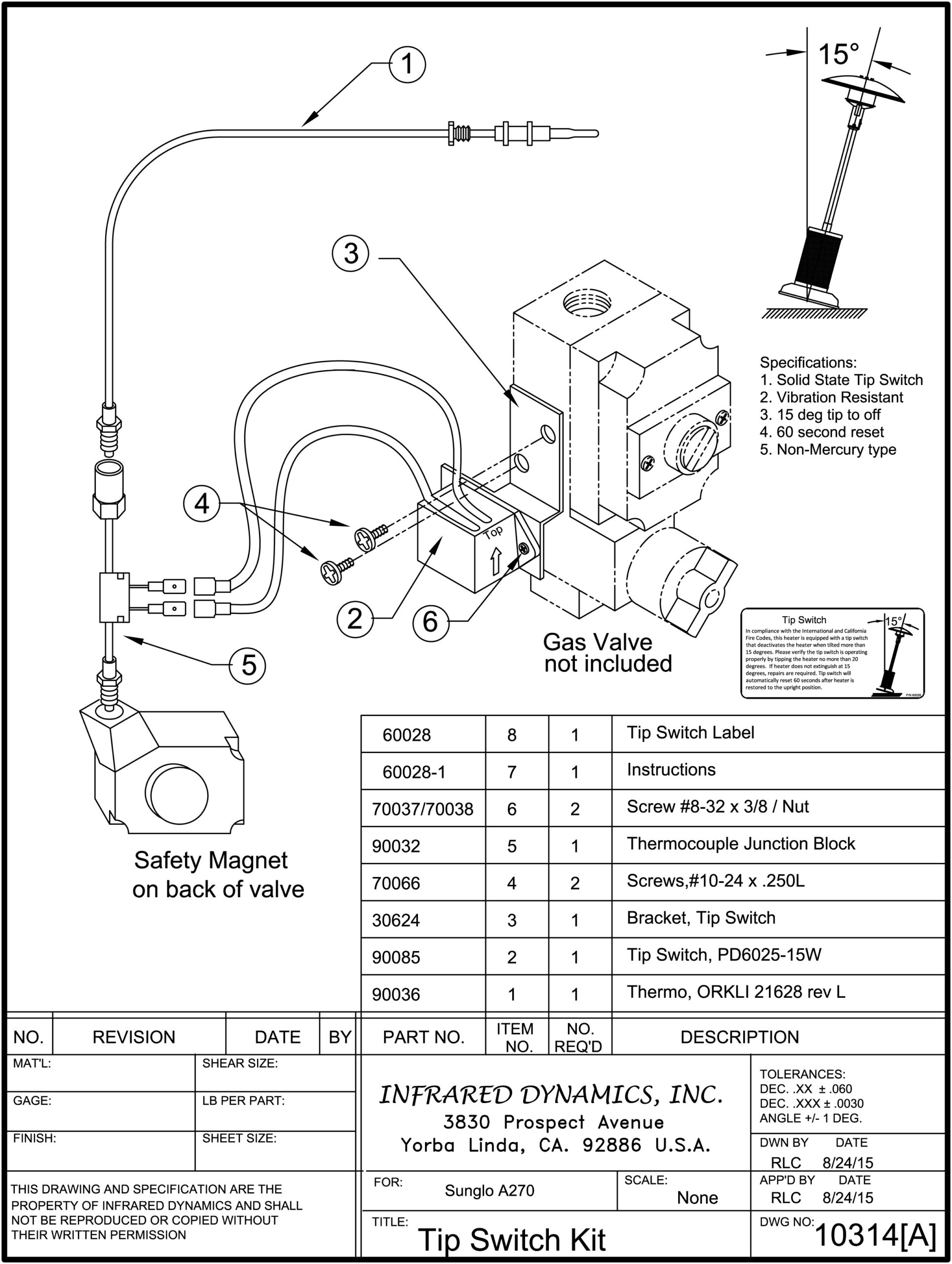

10314 Kit, Tip Switch


>

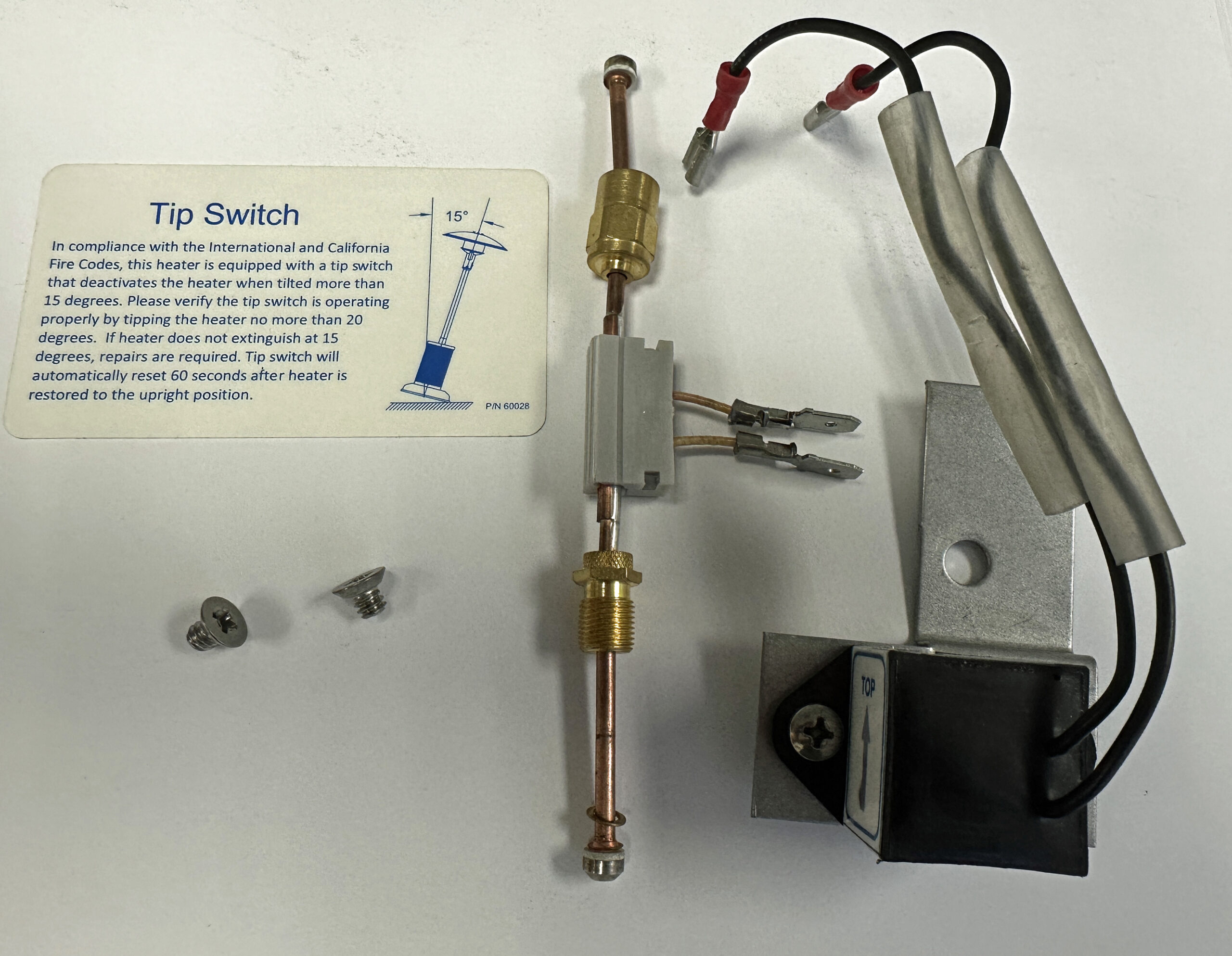

Parts in Tip Switch Kit



Tip Switch Installed in heater. Note thermocouple must screw into ‘blue bird’ adapter
